Trommel Screens

Track-mounted and wheel-portable trommel screens for topsoil, mulch, compost, and rock.

Efficiently screen soil, compost, waste, wood chips rock and stone.

Trommel screens are extremely efficient in separating soil, compost, waste, aggregates, C&D, wood chips, and other materials. The rotating drum allows for tumbling for optimal separation of difficult material along with aeration.

Reliable trommel screening performance and operating efficiency.

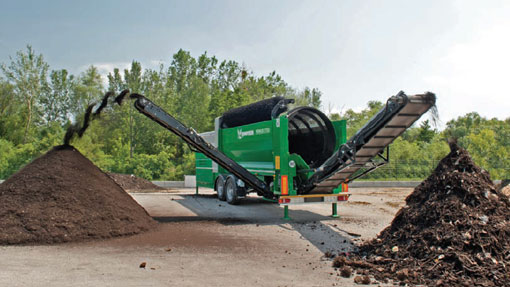

Komptech heavy-duty trommels are efficient screening solutions engineered for soil, aggregate, mulch, waste and compost processing. The solid punch plate horizontal drum is built to handle the toughest materials while delivering the highest quality output.

  • Convenient feeding and efficient discharge.
  • Quick and easy drum changes – No tools.
  • Material rides on the screening surface for effective separation.

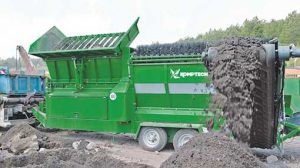

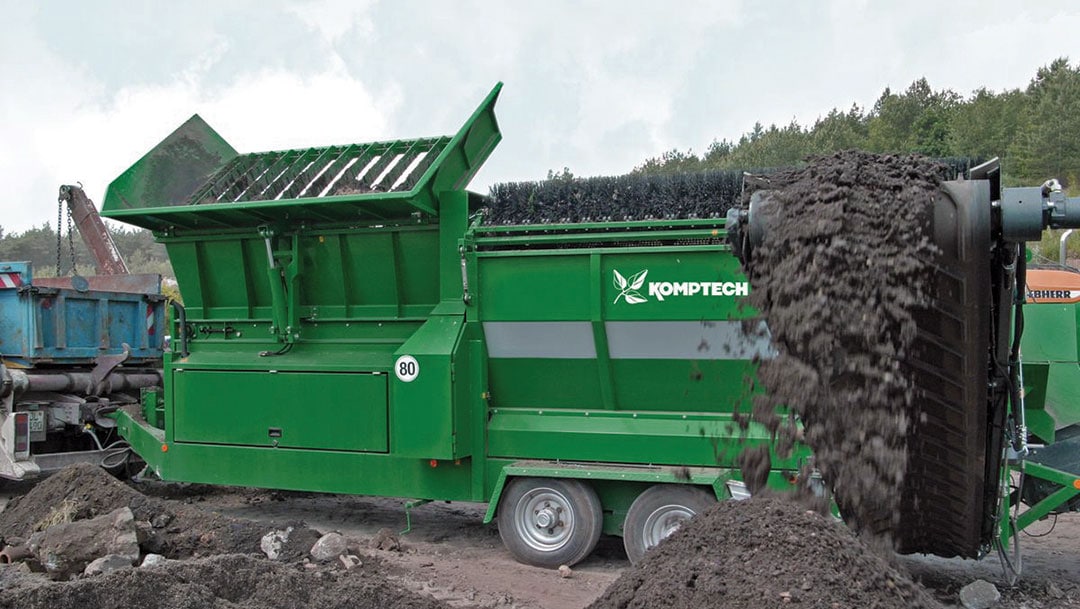

Komptech Primus Trommel Screen

Komptech Primus Trommel

Komptech Primus Heavy-duty Trommel

The Komptech Primus is a heavy-duty, mobile drum screen machine built for small to medium-sized topsoil and compost operations. Heavy-duty components and a hydraulic drum drive make the Primus a powerful, cost-effective solution to your organic screening needs.



  • The horizontal drum delivers consistent output.
  • Material rides on the screening surface for extremely effective separation.

Specifications

Diesel Engine / Horsepower: Perkins Tier 4 Final / 70 HP
Hopper: 4 cubic yard
Screen Drum Diameter: 4′ 9″
Screening Area: 174 sq. ft
Maximum Throughput: Up to 90 cubic yards/hr

Primus Trommel Screen

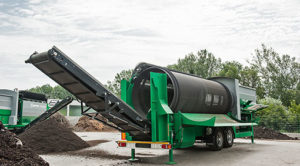

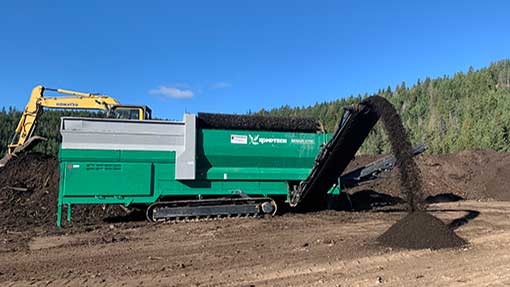

Komptech Nemus 2700 Trommel Screen

Komptech Nemus

Komptech Nemus Trommel Screen

The Nemus 2700 is a mobile hydraulic drum screen, available in track or wheeled chassis, that is built for high throughput screening of heavy soil, compost, mulch and waste materials. The Nemus delivers convenient feeding, efficient discharge, quick drum changes, easy operation, and simplified cleaning and maintenance.

Diesel Engine / Horsepower: Perkins Tier 4 Final / 99 HP
Hopper Volume: 6.5 cubic yard
Screen Drum Diameter: 6’ 7”
Effective Screening Area: 323 sq. Ft.
Throughput Rate: Up to 230 cubic yards/h

Nemus Trommel Screen

Powerscreen Trommel Screens

Powerscreen Logo

Powerscreen’s industry-leading trommel screens are highly efficient in separating soil, compost, waste, aggregates, C&D, wood chips, and other materials. The rotating drum allows for tumbling for optimal separation of challenging material and aeration.

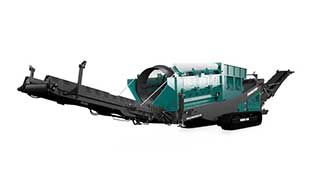

Powerscreen Phoenix 1600 Trommel Screen

Powerscreen Phoenix 1600 Trommel Screen

The Powerscreen Phoenix 1600 Tracked Trommel Screen has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM. With a 4.9m (16’) x 1.54m (5’) drum, unrivalled production throughput is guaranteed due to the screening area, the largest in its class. The tracked configuration allows operators to move the machine around yards with tight spaces and bring the machine to the material for screening

Specification Value
Engine CAT C4.4 82kW Tier 4 Final or CAT C4.4 97kW Constant Speed / CAT C4.4 82kW Tier 4 Final or CAT C4.4 97kW Constant Speed
Drum Diameter 5′ / 1,540mm
Drum Length 16′ / 4,900mm
Weight 46,500lbs / 21,100kg

Phoenix 2100 Wheeled

The Powerscreen Phoenix 2100 Wheeled Trommel Screen is designed to offer unrivalled production throughput and application flexibility. The robust design with optional features such as a heavy-duty tipping grid or double deck vibrating grid make the Phoenix 2100 the most versatile trommel on the market today. The 180° swivel fines conveyor, with a discharge height of 5.7m (18’6”) results in the creation of impressive stockpiles. The machine performs equally well in heavy C&D applications as it does in high volume compost production.

Specification Value
Engine Tier 3: CAT C7.1 202 HP – Tier 4: CAT C4.4 173 HP / Tier 3: CAT C7.1 151 kW – Tier 4: CAT C4.4 129kW
Drum Diameter 6’4″ / 1,940mm
Drum Length 21’2″ / 6,450mm
Weight 60,627lbs / 27,500kg

Phoenix 3300 Wheeled

The Powerscreen Phoenix 3300 Wheeled Trommel Screen is designed to offer unrivalled production throughput and application flexibility. The robust design with optional features such as heavy duty tipping grid or double deck vibrating grid make the Phoenix 3300 the most versatile trommel on the market today. The 180° swivel fines conveyor, with a discharge height of 5.7m (18’6”) results in the creation of impressive stockpiles. The machine performs equally well in heavy C&D applications as it does in high volume compost production.

Engine Tier 3: CAT C7.1 202hp – Tier 4: CAT C4.4 173hp Tier 4 / Tier 3: CAT C7.1 151kW – Tier 4: CAT C4.4 129kW
Drum Diameter 7’7″ / 2,320mm
Drum Length 30’7″ / 9,320mm
Weight 82,673lbs / 37,500kg

MDS Rock Trommel Screens

DS Rock Trommel Screening Rip Rap

Easily process heavy, wet, sticky material and Rock up to 50″

The versatility of these machines goes far beyond screening topsoil, although they do that too.

Cleaning in tough/wet conditions can be extremely challenging. MDS Trommels have optional drum cleaners allowing them to excel where other machines fail by preventing blinding from the heavy, sticky material coming off the rock.

Drum cleaners prevent blinding by removing built-up material from the screening surface.



MDS M412 Rock Trommel Screen

MDS M412 Rock Trommel Screen

The M412 Mobile Track Trommel, the smallest of the MDS range boats an impressive output of 300 tonnes per hour.

Specification Value
Engine CAT 2.2 50kW TIER 4 Diesel | Output 300 tph
Weight 21.5 Tonnes
Max Material Feed Size 3.4m3 Hydraulic Push Feeder
Transport Dimensions Length 12836mm | Width 2500mm | Height 3000mm
Working Dimensions Length 16228mm | Width 2500mm | Height 3000mm with Grid 4.4m

M413 Rock Trommel Screen

M413 Rock Trommel Screen

The M413 Mobile Track Trommel is ideal for screening from light material to recycling demolition waste.

Specification Value
Engine CAT 2.2 50kW | Output 300 tph
Weight 24 Tonnes
Feeder Hydraulic Push Feeder
Transport Dimensions Length 13405mm | Width 2500mm | Height 3100mm
Working Dimensions Length 16850mm | Width 6705mm | Height 6705mm with Grid 4.44m | Weight 29.5 tons

M515 Rock Trommel Screen

M515 Rock Trommel Screen

The M515 Track Trommel is perfect for cleaning dirty material and can handle rocks up to 800mm (32″) in size.

Specification Value
Engine CAT 4.4 96 kW | Output 350 to 500 tph
Weight 48 Tonnes
Feeder Hydraulic Push Feeder
Transport Dimensions Length 17047mm | Width 2980mm with grid 3179mm| Height 3497mm with grid 3735mm
Working Dimensions Length 2092mm | Width 7574mm | Height 5004mm

M518R Trommel Screen

M518R Trommel Screen

The M518R Recycling Trommel was inspired from feedback from our customers and is nowintroduced to the MDS product Range.

Specification Value
Engine CAT 2.2 50kW TIER 4 Diesel | Output 120 tph
Weight 20 Tonnes
Max Material Feed Size 6.54yd3 Capacity Hopper Heavy Duty US Flex Belt Conveyor
Transport Dimensions Length 10374mm | Width 2500mm | Height 3145mm
Working Dimensions Length 16420mm | Width 2500mm | H
