MDS Rotary Trommel Screens: Versatility & Efficiency in Material Handling
Check Out the Lineup
MDS Rotary Trommel Screens: Versatility & Efficiency in Material Handling
Check Out the Lineup
MDS Rotary Trommels are available in various sizes and configurations to provide tailored solutions for Pit & Quarry, Demolition, Recycling, and Environmental Applications.
Designed with contractors in mind, MDS rotary trommels feature modular drums, drum cleaners and electronic systems to monitor and control aspects of the Trommel, ensuring peak operating efficiency and maximized production.
The MDS Advantage
These Trommels provide an advantage in screening because they can handle large rocks up to 50″ and are effective in cleaning clay bound rock and stone mixed with other sticky materials.
T-Link Telematics
In January 2024, MDS has added T-Link Telematics to all new MDS machines. Note: In-Stock rental machines may not be outfitted with a T-Link System.
T-Link operates by connecting to a network of global positioning satellites, allowing operators to access and download machine data regularly via cellular and satellite networks. The system is activated on the machine, and data can be accessed from anywhere via a web-based portal on a PC, smartphone, or tablet.
The dual-band network, utilizing both cellular and GPS technologies, ensures seamless communication between the machine and the T-Link data center. The collected data is then stored for the lifetime of the equipment, providing a comprehensive historical record for analysis and comparison.
Key Features of T-Link:
- Enhanced Machine Uptime: T-Link ensures that your machines operate at peak efficiency, minimizing downtime and maximizing productivity.
- Enhanced Machine Management: The telematics system facilitates comprehensive management, offering real-time insights into the hours, location, and operational status of each machine in your fleet.
- Enhanced Security and Visibility: T-Link provides robust security features, safeguarding your equipment while offering unparalleled visibility into machine activities.
- Cost Minimization: By streamlining operations and providing valuable data for analysis, T-Link enables businesses to minimize costs and optimize resource allocation.
Easily Clean Wet, Sticky Rock Up To 50″
When it comes to screening heavy, wet, and sticky material, MDS Trommel Screens excel where other machines fail.
Cleaning Wet & Sticky Rock
Cleaning in tough/wet conditions can be extremely challenging. MDS Trommels have drum cleaners allowing them to excel where other machines fail by preventing blinding from the heavy, sticky material coming off the rock.
Drum Cleaners Reduce Downtime and Maximize Profitability.
Drum cleaners prevent blinding by removing built up material from the screening surface.
Applications
Screen Rock Up To 50″
Larger units, like the M820 can screen rock up to 50″ and are effective in cleaning clay-bound stone or rocks mixed in clay or other sticky materials
Demolition Waste
Demolition recycling is one of the key applications of MDS Trommels, where they are often used to separate building waste, bricks, concrete and topsoil with sand. They are highly mobile and easily moved onto recycling sites or retrofit into existing recycling systems.
Screen and sort Material By Size
You can put up to three different sizes of screens on some of our trommels, which means you can separate rocks into four different sizes.
Applications
Screen Rock Up To 50″
Larger units, like the M820 can screen rock up to 50″ and are effective in cleaning clay-bound stone or rocks mixed in clay or other sticky materials
Demolition Waste
Demolition recycling is one of the key applications of MDS Trommels, where they are often used to separate building waste, bricks, concrete and topsoil with sand. They are highly mobile and easily moved onto recycling sites or retrofit into existing recycling systems.
Sort Material By Size
You can put up to three different sizes of screen on some of our trommels, which means you can separate rocks into four different sizes.
What is Rip Rap
Rip Rap or Armour Stone, as it is often called, is a rock product used to line shorelines, stream beds, bridge abutments, and other shoreline structures to protect against water or ice erosion.
The only criteria for the rock used to produce rip rap is that it be durable and won’t deteriorate during freeze/thaw cycles or when exposed to water.
There are diferent classifications for rip rap based on size, weight and allowable velocity (m/s). The province of British Columbia has developed its own Standards for Riprap that provides guidance for selection, sizing and placement of riprap. You should consult these to learn more.
Typical Applications Include:
- Rip Rap/Armour Rock
- Blast Rock
- Granite
- Limestone
- Sticky/Wet Material
- Demolition Waste
- Primary Processing
- General Recycling
- Wood Waste
MDS M412 Rock Trommel Screen
The M412 Mobile Track Trommel, the smallest of the MDS range boats an impressive output of 300 tonnes per hour.
| Specification | Value |
|---|---|
| Engine | CAT 2.2 50kW TIER 4 Diesel | Output 300 tph |
| Weight | 21.5 Tonnes |
| Max Material Feed Size | 3.4m3 Hydraulic Push Feeder |
| Transport Dimensions | Length 12836mm | Width 2500mm | Height 3000mm |
| Working Dimensions | Length 16228mm | Width 2500mm | Height 3000mm with Grid 4.4m |
M413 Mobile Track Rock Trommel
M413 Rock Trommel Screen
The M413 Mobile Track Trommel is ideal for screening from light material to recycling demolition waste.

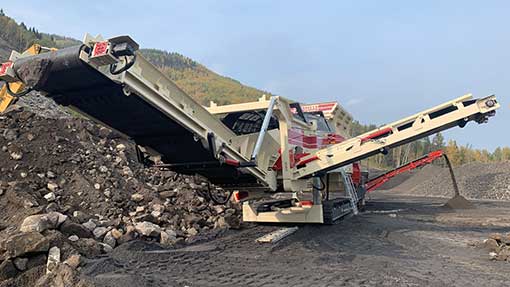

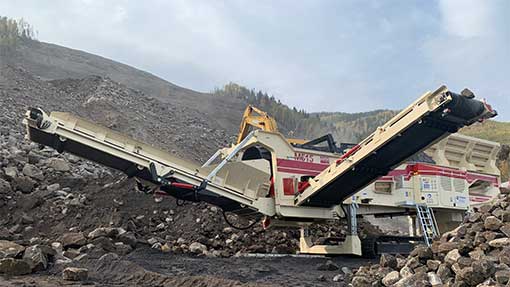

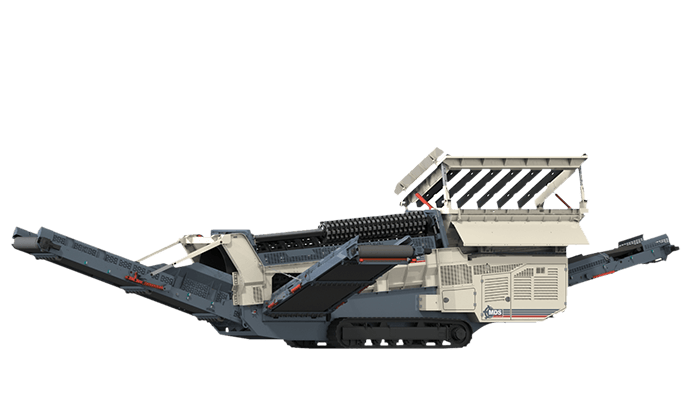

M515 Mobile Track Rock Trommel
M515 Rock Trommel Screen
The M515 Track Trommel is perfect for cleaning dirty material and can handle rocks up to 800mm (32″) in size.

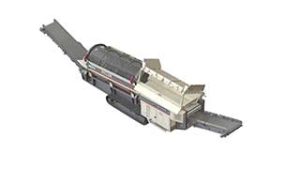

M518R Trommel Screen
| Specification | Value |
|---|---|
| Engine | CAT 2.2 50kW TIER 4 Diesel | Output 120 tph |
| Weight | 20 Tonnes |
| Max Material Feed Size | 6.54yd3 Capacity Hopper Heavy Duty US Flex Belt Conveyor |
| Transport Dimensions | Length 10374mm | Width 2500mm | Height 3145mm |
| Working Dimensions | Length 16420mm | Width 2500mm | H |
