HL75 High Level Feeder

Increase stockpile capacities and reduce on-site material handling.

The Powerscreen HL75 High-Level Feeder Conveyor is fully mobile and combines the highly versatile Chieftain Feeder system and a 75′ stockpiling conveyor.

  • Proven Chieftain® feeder system means loading directly from wheel loader.
  • Self powered diesel hydraulic tracked feeder conveyor can be used alone or in conjunction with other Powerscreen mobile crushing and screening equipment.
  • Containerised shipping means low cost transport
  • a ‘metered or controlled’ feed of material into any other machine.

HL75 Features

This beast comes complete with a 56” feeder that can be reversed, an auger to mulch your compost, a ribbed chevron belt, and the conveyor can reach a height of 30’.

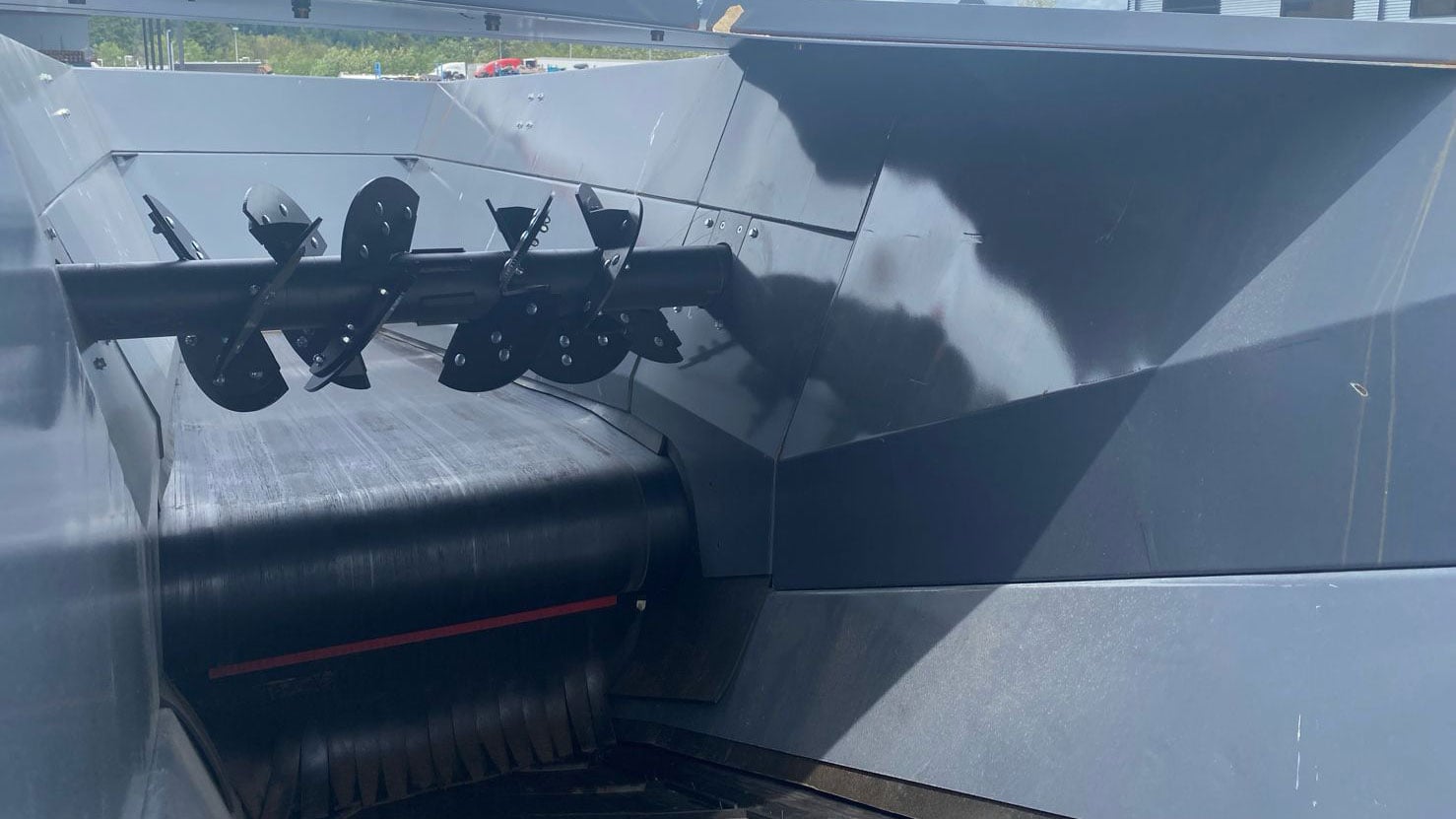

56″ Reversible Feeder and Auger.

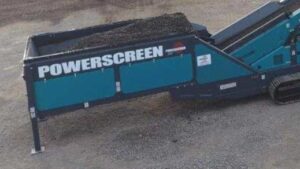

Hopper

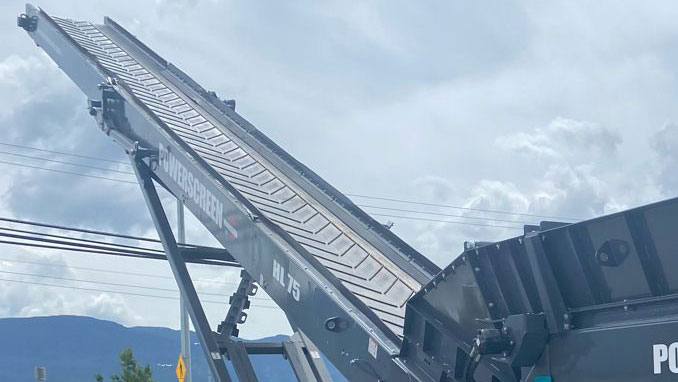

Ribbed Chevron Belt

Chevron-Belt

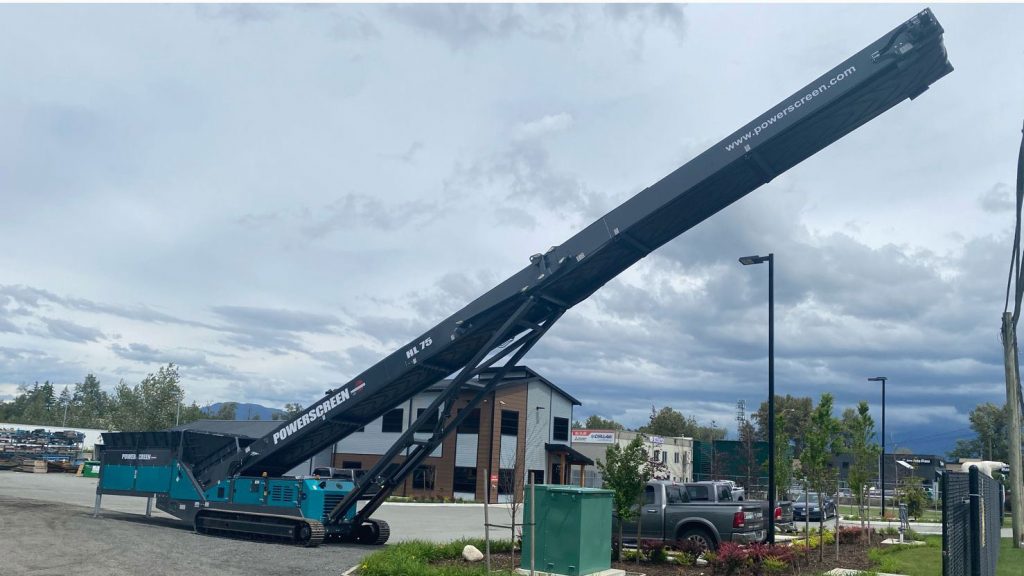

 30′ Discharge Height

30-foot-discharge-height
HL 75 Feeder

CONVEYOR DETAILS HIGH LEVEL FEEDER

  • Conveyor length 22.6m (74’ 2”)
  • Belt width 1200mm (42”)
  • Discharge height 8m (26’ 3”) @ 18°
  • Max. discharge height 9.8m (32’ 2”) @ 24°

TRANSPORT DIMENSIONS HIGH-LEVEL FEEDER

  • Length 19.5m (63’ 11”)
  • Width 2.75m (9’)
  • Height 3.12m (10’ 2”)
  • Weight (Est.) 25,000kg (55,115lbs)

Containerized shipping 40’ x 9’6”2 x High Cube Containers

Production capacity Up to 500TPH (551 US TPH)
