MDS M515 Track Trommel

The perfect trommel for cleaning dirty material and can handle rocks up to 800mm (32″) in size.

MDS Rock Trommels excel where other machines fail.

The MDS M515 Track Trommel is perfect for cleaning dirty material and can handle rocks up to 800mm (32”) in size. It comes complete with fold-out stockpiling conveyors and is ideal for moving around the quarry or from one site to the next.

Suitable for: Overburden, Sticky/Dirty/Clay, Rip Rap/Armour Rock, Limestone, Demolition, Blasted Rock.

M515 Features

Feature descriptions on MS515 Trommel

Specs & Dimensions

M515 Travel Dimensions

Machine Specifications

Engine
CAT 4.4 129 HP | Output 350 to 500 tph / CAT 4.4 96 kW | Output 350 to 500 tph

Weight
105822 lbs / 48 Tonnes

Feeder
Hydraulic Push Feeder / Hydraulic Push Feeder

Drum
Diameter:
4′ 11″ (1.5m) Length: 18′ 1″  (55m)

Max Rock Size: 32″ (800mm)

Approx. Tons/Hour: 350 – 500

Transport Dimensions

Length: 55’ 11” | Width: 9’ 9” with grid 10’ 5” | Height 11’ 6” with grid: 12’ 3”

Length: 17047mm | Width: 2980mm with grid 3179mm| Height: 3497mm with grid 3735mm


Working Dimensions

Length: 68’ 10” (2092mm) | Width: 24’ 10” (7545mm) | Height: 16’ 5” (5004mm)

Get Social With Us!

MDS M515 Track Trommel

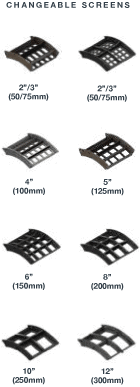

M515 Types of screens
