Powerscreen Maxtrak Mobile Cone Crushers
High-performance mobile cone crushers for sale and rent across British Columbia and Western Canada. Authorized Powerscreen dealer sales, parts, and service.
Key Specifications
- Applications: Secondary & tertiary hard-rock crushing, aggregate production, and recycling.
- Output Capacity: Up to 700 tph (772 US tph).
- Core Technology: Automax® Cone Chamber, Tramp Iron Release, and Hydraulic Unblocking.
- Featured Models: 1000 Maxtrak, 1000SR, 1000E, 1150 Maxtrak, 1150 Pre-screen, 1300 Maxtrak.
Powerscreen Maxtrak Series Cone Crushers
Built for maximum throughput and mobility, the Powerscreen Maxtrak line offers unmatched flexibility for secondary and tertiary aggregate crushing. Whether you need direct feed or pre-screening capabilities, we have models ready for job site delivery.
Why Choose the Maxtrak Series? (Key Benefits)
Automax Cone Technology
Delivers high-reduction ratios and excellent cubical product shape for aggregate and sub-base materials.

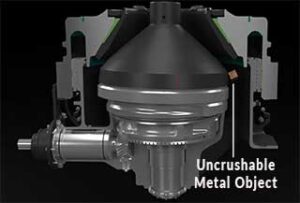

Tramp Iron Release & Unblocking
Automatic hydraulic safety system lets uncrushable metal pass through the chamber without stopping production.

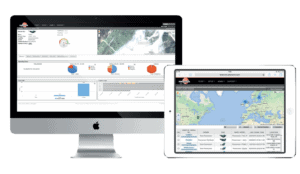

Pulse Telematics
Standard on Maxtrak models to monitor equipment health , track fuel consumption, and optimize performance remotely.
Powerscreen Maxtrak Cone Crusher Comparison
Compare the Powerscreen 1000 Maxtrak, 1150 Maxtrak and 1300 Maxtrak mobile cone crushers by crushing specifications, transport and working dimensions, and typical applications. Metric and imperial measurements are provided for easy reference.
| Specification | 1000 Maxtrak | 1150 Maxtrak | 1300 Maxtrak |
|---|---|---|---|
| Crushing performance | |||
| Output capacity (potential)* | Up to 230 t/h Up to 253 US short tons/h | Approx. 300–330 t/h 331–364 US short tons/h | Up to 350 t/h Up to 386 US short tons/h |
| Closed-side setting (CSS) | 18–36 mm 0.71–1.42 in | 18–45 mm 0.71–1.77 in | 24–44 mm 0.94–1.73 in |
| Cone chamber | Automax® | Automax® | Automax® |
| Cone head diameter | 1,000 mm (39.4 in) | 1,150 mm (45.3 in) | 1,300 mm (51.2 in) |
| Maximum feed size | Not specified in reference brochure | 180 mm (7.1 in)† | 220 mm (8.7 in) |
| Crusher drive type | Direct drive | Direct drive | Direct drive |
| Transport dimensions (length × width × height) | |||
| Transport dimensions | 14.60 × 2.80 × 3.46 m 47.9 × 9.2 × 11.4 ft | 16.90 × 3.60 × 3.00 m † 55.4 × 11.8 × 9.8 ft | 15.35 × 3.00 × 3.85 m 50.4 × 9.8 × 12.6 ft |
| Approximate operating weight | 30,440 kg 67,108 lb | 42,900 kg 94,578 lb | 47,880–48,020 kg 105,557–105,865 lb |
| Working dimensions (length × width × height) | |||
| Working dimensions | 14.60 × 2.80 × 4.10 m 47.9 × 9.2 × 13.5 ft | 15.80 × 4.10 × 5.22 m 51.8 × 13.5 × 17.1 ft | 15.50 × 3.85 × 4.70 m 50.9 × 12.6 × 15.4 ft |
| Specialized features and primary applications | |||
| Features and applications |
|
|
|
From the ground up, the Maxtrak® has been designed to improve productivity and facilitate setup and operation.
- Hydraulic-assisted conveyor positioning.
- Hopper setup enables fast setup and rapid mobility.
- Easy access maintenance and inspection platforms.
- Easy access to the engine, crusher and feed conveyor.
- Remote radio track controls are standard.
- Variable-speed belt feeders with integral hoppers
- Hydraulic raise and lower feed assemblies for transport and cone access for liner changes.
- Can be fed with full-level control from a conveyor, bucket loader or excavator.

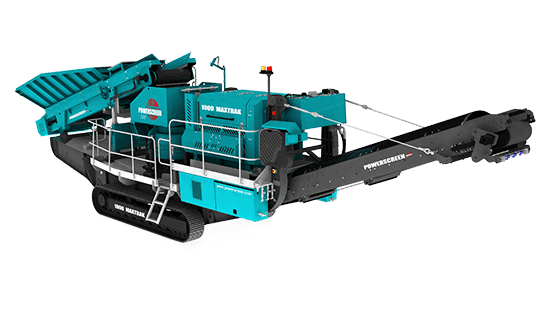

Powerscreen 1000 Maxtrak
Best for: Direct feed applications on clean rock without pre-screening.
Key Specs: Direct electric/hydraulic drive, automatic tramp relief, fuel-efficient engine.
1000 Maxtrak SR
Best for: for direct feed applications without pre-screening on clean rock.
1150 Maxtrak
Best for: Mid-sized heavy aggregate crushing with optional pre-screen to strip fines before crushing.
Key Specs: Level probe feed regulation for choke feeding, rapid setup, variable-speed belt feeders.
1300 Maxtrak
Best for: Large-scale secondary operations taking heavy feed directly from a primary jaw crusher.
Key Specs: Accepts up to 8.7-inch feed, high reduction ratios, integrated telematics.
Frequently Asked Questions
Can I rent a Powerscreen Maxtrak for a short-term project?
Yes, Foreman Equipment offers flexible short-term and long-term rental options across Western Canada, complete with operator orientation and service support.
What is the difference between direct feed and pre-screen models?
Direct feed models feed material straight into the cone chamber—ideal for clean rock. Pre-screen models feature a screen deck upstream to strip out fines or dirt before crushing, increasing overall throughput and extending liner life.
Do you provide genuine Powerscreen wear parts and maintenance?
As Western Canada’s authorized Powerscreen dealer, we stock OEM manganese liners, mantle replacements, and offer full field service support.
Ready to put a Maxtrak to work on your site?
Contact our team for sales, rental rates, or to request a custom site evaluation.
