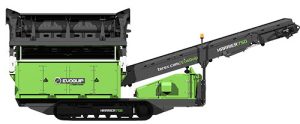

Evoquip Harrier 750 Compact Mobile Scalping Screen
Big Performance, Small footprintThe Harrier 750 is a versatile compact workhorse at home in the toughest scalping or fine screening applications. No matter where you’re working, this guy’s got your back.
High-Capacity Screening, Where Space is Tight
The Evoquip Harrier 750 scalping screen is built for jobs where space is limited but productivity can’t be. Despite its compact frame, it delivers up to 660 tons per hour, handling heavy-duty scalping and fine screening with ease. It’s the perfect machine for tight urban sites, small quarries, and mobile contractors who demand versatility without sacrificing output.
The vibrating grid length offers a large target area and can be fed with either a wheel loader or an excavator.
Key Features At A Glance

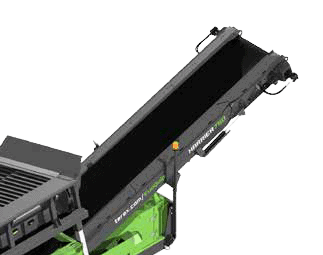

Dicharge Conveyor
- 1.2m (48”), EP 500 / 3ply belt with 5+1,5mm cover
- Hydraulic drive with steel skirting
- Heavy duty impact roller in hopper
- Dual speed belt: 46 & 75 metres per minute
- Twin drive as standard
- Discharge height: 3.4m (11’ 2”)
- Stockpile capacity: 83mÑ (108.6yd

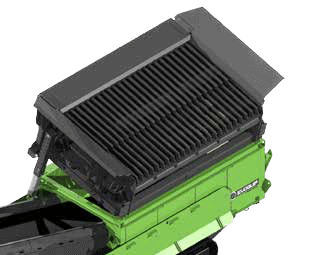

Vibrating Grid and Hopper
- Split level scalping grizzly with 3 T-Bar interchangeable
- cassettes and feed plate, mounted on 12 heavy duty springs.
- easy-to-change end-tensioned meshes on bottom deck
- Standard grid opening 150mm (6”), Optional 100mm (4”)
- Standard bottom deck woven mesh aperture (60mm) (2.4”)
- Grid opening: 3.35m (11’)
- Feed opening with wing plates: 4.41m (14’ 6”)
- Grid length: 2.6m (8’ 7”) (with feed plate)
- Grid angle: hydraulically variable between

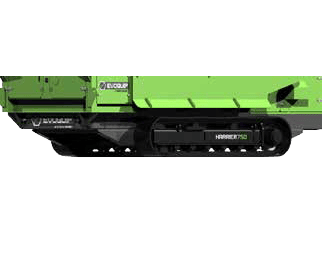

Crawler Track Data
- Shoe width: 400mm (16”)
- Sprocket centres: 2.92m
- Gradability degrees: 30Æ
- Tracks fully protected by heavy duty deflector plate
- Radio remote control standard on Tier 3, optional Tier 4

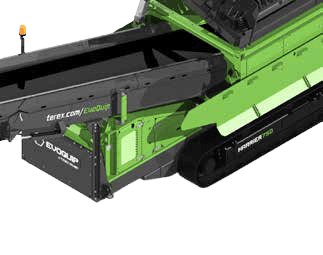

Power Unit & Hydraulics
- Tier 3: DEUTZ D914 53kW/74Hp @2300rpm
- Tier 4: CAT C3.4 engine (55kW / 74hp @ 1800rpm)
- Simple to operate
- Hydraulic tank: 536 litres (142 US Gallon)
- Diesel tank: 145 litres (142 US Gallon)
- Standard hydraulic oil – Century 46
- Optional hydraulic oil – Century 68
Dimensions
Ultra-Compact Transport Size:
Length: 31 ft
Width: 9 ft 3 in
Height: 10 ft 6 in
Double Deck Screen:
Size: 14′ 8″ x 8′ 7″ (4.5m x 2.6m)
Impressive Output Potential:
Up to 660 tph
Multipurpose Performer:
Tough enough for scalping rock and rubble
Precise enough for topsoil, mulch, and sand
Why Compact Makes a Big Difference
The Evoquip Harrier 750’s small footprint makes it easy to move, easy to permit, and easy to fit into jobs where larger machines simply won’t work. It’s a go-to solution for:
Tight urban construction zones
Mobile screening crews
Recycling yards with limited space
Contractors needing fast setup and teardown
Download Brochure
Want the full technical breakdown? We’ve got you covered.
👉 [Download the Harrier 750 Brochure – PDF]
Includes detailed dimensions, weight, engine options, screening angles, conveyor specs, and more.
